Advanced Laser Welding Cell Solutions

Laser welding capacity depends on laser power, joint design, steel grade, fit-up quality, travel speed, focal position, and whether the application uses a single pass or multiple passes. Thin sheet is a common fit for laser welding, while thicker steel may require higher power, edge preparation, multi-pass procedures, or a different welding process. Review representative parts and required weld specifications during application planning.

Laser welding can produce welds that are comparable in strength to MIG welding when the process is correctly matched to the material, joint, fit-up, and required weld profile. Strength is determined by the completed weld design and procedure, not the process name alone. MIG may remain preferable for some gaps, thicker sections, positional work, or applications requiring larger weld deposits.

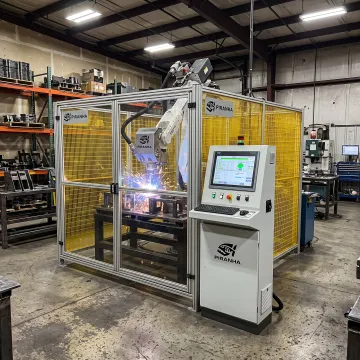

A laser welding cell is an integrated production system that combines a laser source and welding head with safety guarding, controls, fixturing, and often automated part handling or robotic motion. The cell is designed to perform repeatable welds in a controlled environment. Its configuration should reflect the part family, joint geometry, material flow, operator involvement, production volume, and applicable safety requirements.

Laser welding is commonly evaluated for steel, stainless steel, aluminum, and other metals, but suitability varies by alloy, thickness, surface condition, joint design, and required quality level. Reflectivity, thermal conductivity, coatings, and contamination can affect process results. A productive cell plan begins with representative sample parts, defined acceptance criteria, and a review of the required weld penetration, appearance, and cycle time.

A properly configured cell can improve consistency by controlling welding parameters, part location, travel path, and process timing more closely than a manual operation. Repeatable fixturing and programmed motion help reduce variation between parts and shifts. Results still depend on stable incoming material, clean joint preparation, correct fit-up, preventative maintenance, and validation of the welding procedure for the specific application.

Prepare drawings, material grades and thicknesses, joint details, current weld procedures, target cycle times, annual volume, part dimensions, and quality requirements. It is also useful to document fit-up variation, available floor space, utility constraints, material handling, and downstream inspection needs. These details help determine the appropriate laser capability, fixturing approach, safeguarding, automation level, and operator workflow.

Automation can often be planned in stages when the cell layout, controls, material handling, and safety strategy are considered from the beginning. Future options may include robotic loading, unloading, part transfer, vision systems, or additional fixturing. The practical path depends on the part mix and existing workflow. Discuss expected volume growth early to avoid limiting future expansion unnecessarily.

Piranha provides lifetime service and support for its CNC fiber laser equipment through remote diagnostics, phone, email, operator training, maintenance training, and application training. Spare parts are supported from U.S. inventory in Belvidere, Illinois, with same-day shipping available for eligible in-stock items. Confirm the support scope, commissioning needs, and training plan for the specific welding-cell configuration before purchase.
